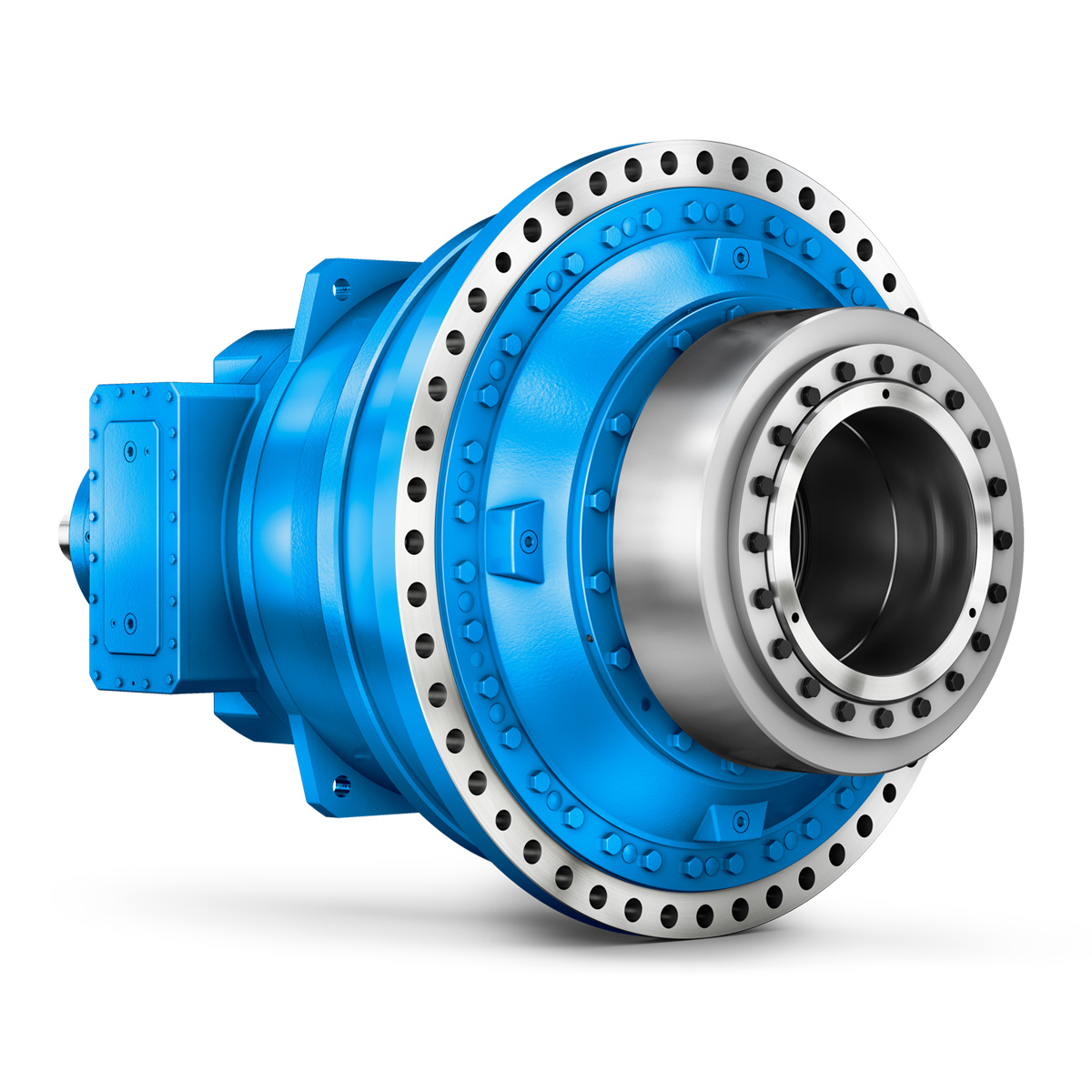

PLANUREX 3 Standard Series

Expect more.

• Planetary gear unit for horizontal and vertical mounting positions
• Rated torque from 480,000 Nm up to 5,450,000 Nm (17 sizes)
• Transmission ratios from i = 1:45 up to 1:300

Premium has many facets in the world of drives. These result from the expectations that customers place on a product and from how they are fulfilled. With our PLANUREX 3 gearboxes we redefine these expectations. PLANUREX 3 represents a new generation of planetary gear units with high power density for a wide range of industrial applications.

PLANUREX 3 offers a complete, fully standardized planetary gear unit portfolio, combined with short delivery times worldwide, an excellent price/performance ratio and very high modularity. The concept was designed to balance power density, availability and cost.

As plants often operate under high loads, our gear units are designed for high loads and high axial and radial forces. With PLANUREX 3, we therefore offer compact drive solutions designed for continuous-duty applications that support high operational reliability even under intermittent loads. This generation of gear units combines high power density with a robust design and can contribute to the availability of your driven machine.

The series offers you various options for optimally adapting the gear unit to the requirements of your application, e.g:

• Gear unit base for base mounting
• Torque shaft support
• Support 2 (Chun version)
• Connection for oil cooling
• Suitable for temperatures down to -40 °C

Your benefits at a glance

• High power density in a compact design.
• High efficiency levels in accordance with the product specifications.
• High quality and reliability for industrial applications.
• High overload capacity: Nominal torque x 2
• Very high modularity
• Many sizes in harmonic gradation close to the desired torque
• 3D design with FEM
• Available i. e. individually or as integrated drive train

Applications

• Roller presses
• Sugar cane mills
• Central drive
• Apron feeder
• Vertical mill drives
• Travel drives
• and many more

Did you already know?

DIAGNOSTEX is the next step towards the digital future of drive technology. Our gear units can optionally be equipped with sensors to monitor the condition of the systems continuously during operation. This allows maintenance measures to be planned. It can help reduce maintenance costs and the risk of unplanned downtime.
