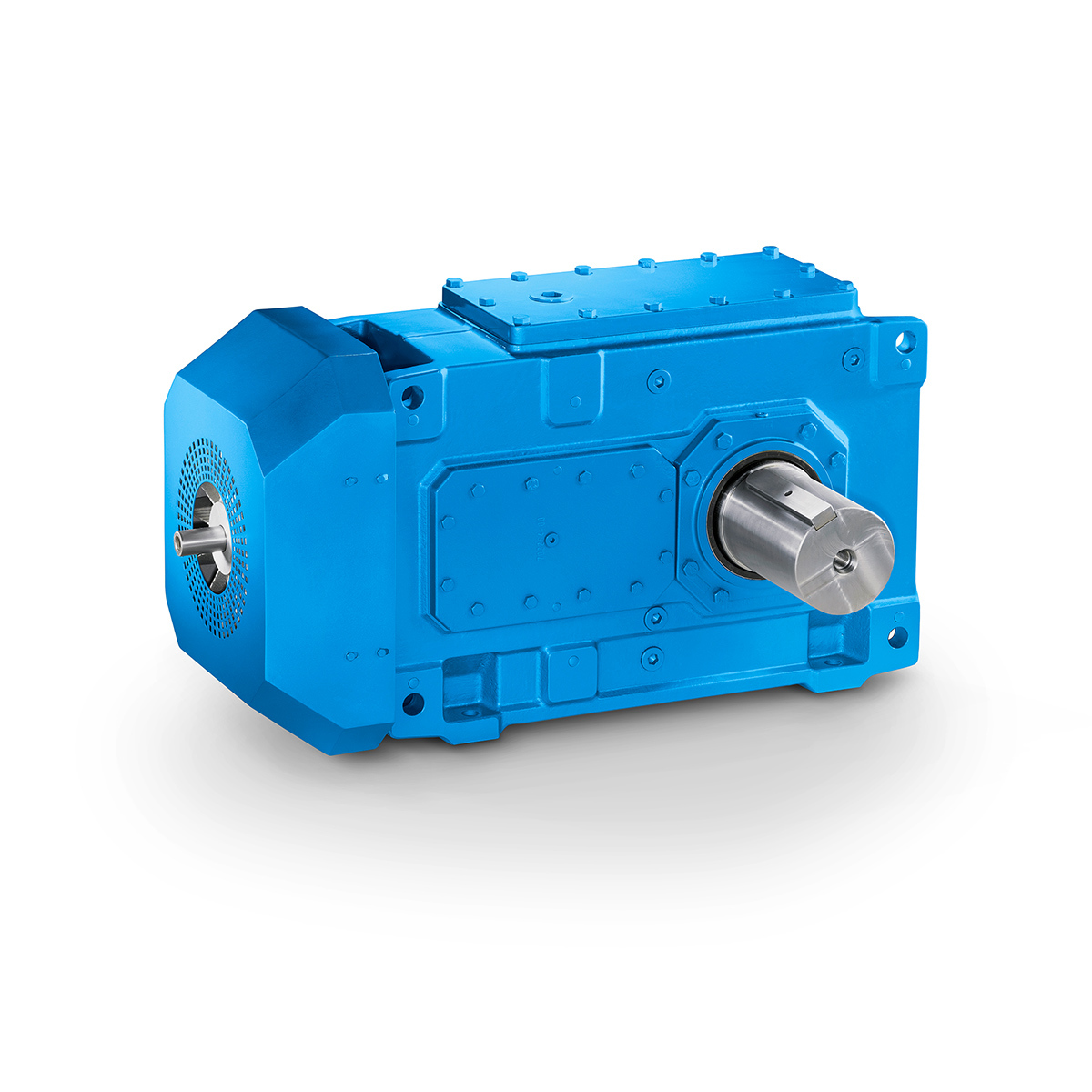

Water screws

Technical Data
Rated Torque 5.8 up to 1400 kNm
Transmission i = 6.3 ... 450
Power up to 10,500 kW
Translation Stages 2-, 3- and 4-stage
Sizes 28
Mounting Position Inclination 30 ... 38°
Type Helical gear unit

Compact complete solution

Water screws rotate in semicircular concrete channels and are used to raise water in water-treatment plants and drainage systems. The screw works on the Archimedian principle at an inclination angle of approx. 38°. Water screws can transport very dirty liquids, even when they contain finer solid materials. Usually the conveying height is just a few metres at a relatively fast output-flow rate.

The gear-unit output shaft set at an angle in the helix angle of the screw does not absorb any additional forces and transmits the torque to the screw shaft by means of a flexible coupling. FLENDER gear units are configured for such special application. Their use requires of the gear unit an adapted oil level, a suitable shaft sealing, an oil drain and a ventilation device. To prevent the screw from running backwards under the pressure of the water forced back when the motor is stopped, the gear unit can be fitted with a backstop.



Your benefits at a glance

  • Low noise emission
  • Low vibration
  • High efficiency
  • Complete solution
    - Mounted on a basic frame
    - Backstop (optional)
    - Coupling protection by safety hood
  • Monitoring possible
  • Splash lubrication



Applications

  • Municipal wastewater plants
  • Dewatering
  • Irrigation systems
  • Wherever water must be lifted from one level to a higher level
